Compatible with icclim 7.1.0+

Tutorial on calculating a climate index for the Warm/Wet Days

About

This tutorial will demonstrate how to calculate a climate index using a specific climate indices package. The example provided is of the Warm/Wet Days index, but similar principles can be applied to many other types of single or multi-variable indices available in the icclim package.

The data is provided by Copernicus Climate Change Service (C3S) and includes daily gridded meteorological data for Europe from 1950 to present derived from in-situ observations (E-OBS) of maximum temperature, minimum temperature, and precipitation.

The tutorial will first show how to download the necessary data from the C3S Climate Data Store (CDS). It will then describe how to calculate the Warm/Wet Days index, and finally plot a map of the Warm/Wet Days index climatology over Europe.

The steps shown in this tutorial can be applied to other climate datasets with the proper variable to calculate specific climate indices. For the current index, Warm/Wet Days, the Daily Mean Temperature and the Daily Precipitation Sum are needed.

How to access the notebook

This tutorial is in the form of a Jupyter notebook.

NBViewer
(this will not run the notebook, only render it)

To run this notebook in your own environment, we suggest you install Anaconda, which contains most of the libraries you will need. You also need at least python version 3.8 for this notebook to work because of some requirements from some packages.

You will need to install icclim (%pip install icclim) for calculating the climate indices, and the CDS API (%pip install cdsapi) for downloading data programatically from the CDS. You will also need to install matplotlib (%pip install matplotlib) and cartopy (%conda install cartopy) to enable plotting of the results. The % character is to ensure installation occurs in your environment. The installation of cartopy requires a conda environment, if not already installed.

Search, download and view data

Before we begin we must prepare our environment. This includes installing the Application Programming Interface (API) of the CDS, and importing the various python libraries that we will need.

Install CDS API

To install the CDS API, run the following command if not already installed in your environment.

import os
from zipfile import ZipFile

import cartopy.crs as ccrs
import cdsapi
import matplotlib.pyplot as plt
import urllib3
import xarray as xr

import icclim

%pip install cdsapi

Install icclim

To install icclim, run the following command if not already installed in your environment.

%pip install icclim

Install matplotlib and cartopy

To install matplotlib and cartopy to enable plotting, run the following command if not already installed in your environment. A conda environment is expected as cartopy cannot be correctly installed with pip.

%pip install matplotlib

%conda install -y cartopy

Import libraries

We will be working with data in NetCDF format and calculating climate indices. We will use the icclim package and its dependencies for working with multidimensional arrays, in particular Xarray. We will also need libraries for plotting and viewing data, in this case we will use Matplotlib and Cartopy.

# CDS API
# icclim package for calculating climate indices
# To unzip dataset files from the CDS
# Libraries for working with multidimensional arrays
# To add specific units spelling
# Libraries for plotting and visualising data
# Disable warnings for data download via API
urllib3.disable_warnings()

Enter your CDS API key

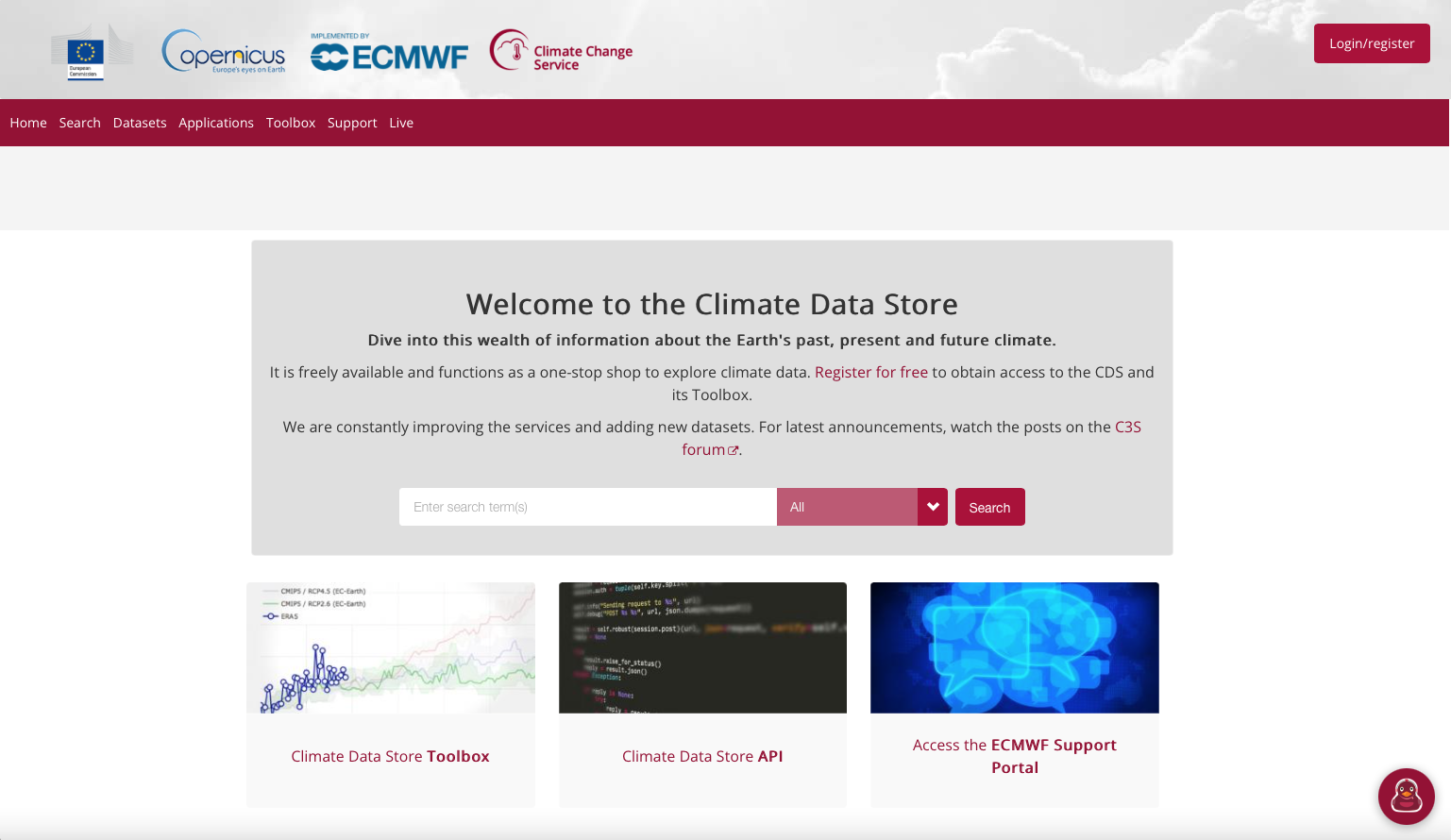

We will request data from the Climate Data Store (CDS) programmatically with the help of the CDS API. Let us make use of the option to manually set the CDS API credentials. First, you have to define two variables: URL and KEY which build together your CDS API key. The string of characters that make up your KEY include your personal User ID and CDS API key. To obtain these, first register or login to the CDS (http://cds.climate.copernicus.eu), then visit https://cds.climate.copernicus.eu/api-how-to and copy the string of characters listed after “key:”. Replace the ######### below with this string.

URL = "https://cds.climate.copernicus.eu/api/v2"
KEY = "#########"

Here we specify a data directory in which we will download our data and all output files that we will generate:

DATADIR = "./"

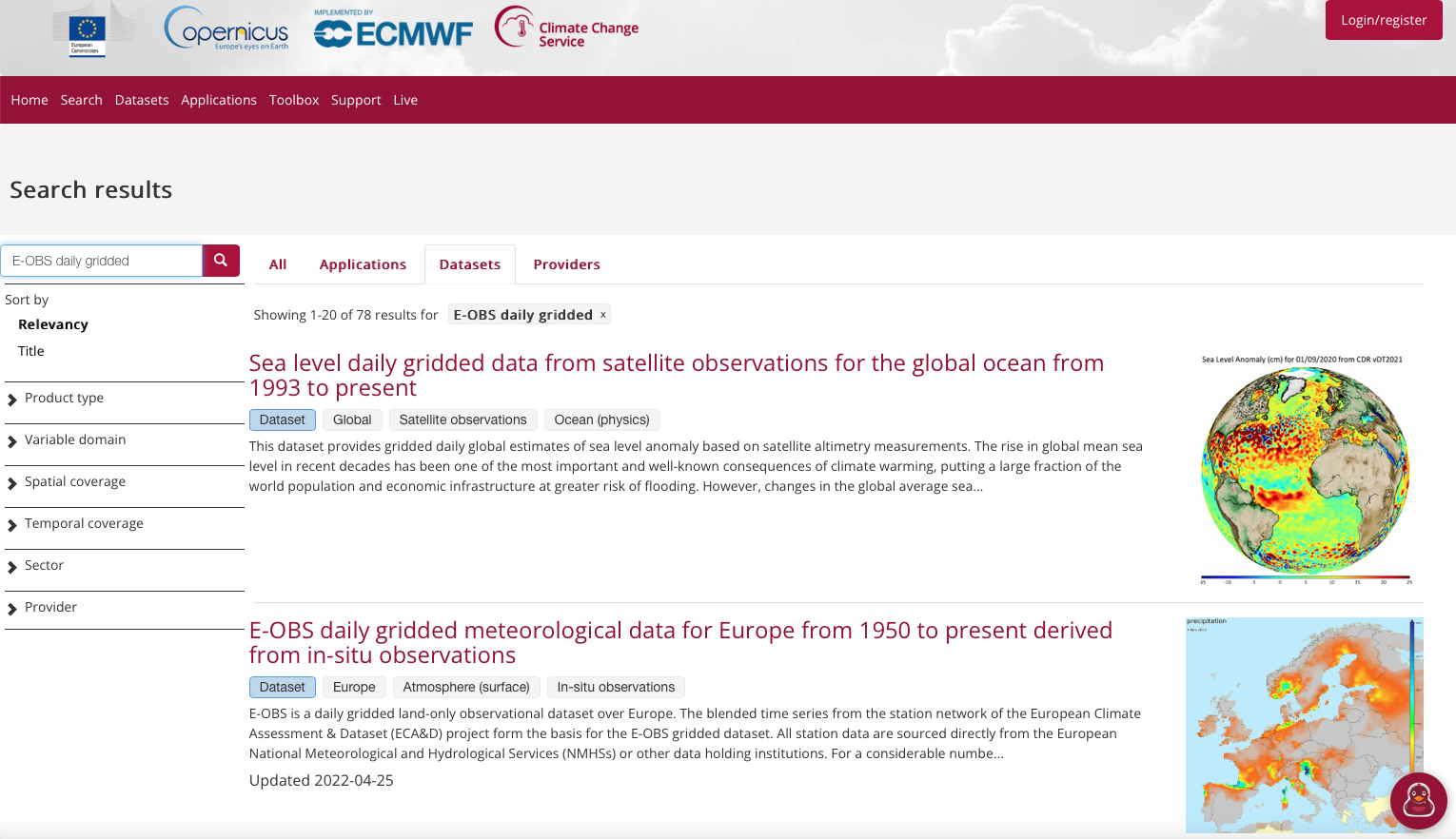

Search for climate data to calculate the Warm/Wet Days index

The Warm/Wet Days index we will calculate takes two parameters as input, the daily Mean Temperature and the Daily Precipitation Sum. Data for those parameters are available as part of the E-OBS daily gridded meteorological data for Europe from 1950 to present, but we will select a shorter period so that the download is faster: we will select the period from 2011 to 2021. We will search for this data on the CDS website: http://cds.climate.copernicus.eu. The specific dataset we will use is the E-OBS daily gridded meteorological data for Europe from 1950 to present derived from in-situ observations.

Having selected the dataset, we now need to specify what product type, variables, temporal and geographic coverage we are interested in. These can all be selected in the “Download data” tab. In this tab a form appears in which we will select the following parameters to download:

• Product type: Ensemble mean

• Variable: Mean Temperature and Precipitation Amount

• Grid resolution: 0.1deg

• Period: 2011_2021

• Version: 25.0e (Latest version)

• Format: Zip file (.zip)

At the end of the download form, select “Show API request”. This will reveal a block of code, which you can simply copy and paste into a cell of your Jupyter Notebook (see cells below). You will do this once for the Mean Temperature and Precipitation Amount.

Download data

… having copied the API request into the cell below, running this will retrieve and download the data you requested into your local directory. However, before you run the cell below, the terms and conditions of this particular dataset need to have been accepted in the CDS. The option to view and accept these conditions is given at the end of the download form, just above the “Show API request” option.

c = cdsapi.Client(url=URL, key=KEY)

# For the full period, use period: 'full_period' but it takes a long time to download data
# To download last decade use 'period': '2011_2021',

c.retrieve(
    "insitu-gridded-observations-europe",
    {
        "format": "zip",
        "product_type": "ensemble_mean",
        "variable": [
            "mean_temperature",
            "precipitation_amount",
        ],
        "grid_resolution": "0.1deg",
        "period": "2011_2021",
        "version": "25.0e",
    },
    "eobs_tg_rr.zip",
)

Inspect Data

We have requested the data in a zip archive. This zip archive contains a file in the NetCDF format. This is a commonly used format for array-oriented scientific data. To read and process this data we will make use of the underlying Xarray library that is used by the software to calculate the climate index. Xarray is an open source project and Python package that makes working with labelled multi-dimensional arrays simple and efficient. We will uncompress the archive and retrieve the filename(s). The archive contain several files, because we have two parameters, both the mean temperatures and the precipitation amount (t and rr respectively), but since we requested only one time period, we have a list of one file per parameter.

# Create a ZipFile Object and load eobs_pr.zip in it
with ZipFile("eobs_tg_rr.zip", "r") as zip_obj:
    # Get a list of all archived file names from the zip
    list_of_file_names = zip_obj.namelist()
    # Extract all the contents of zip file in current directory
    zip_obj.extractall()

# List the NetCDF filenames of the dataset

['tg_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc', 'rr_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc']

Calculate Warm/Wet Days index using icclim

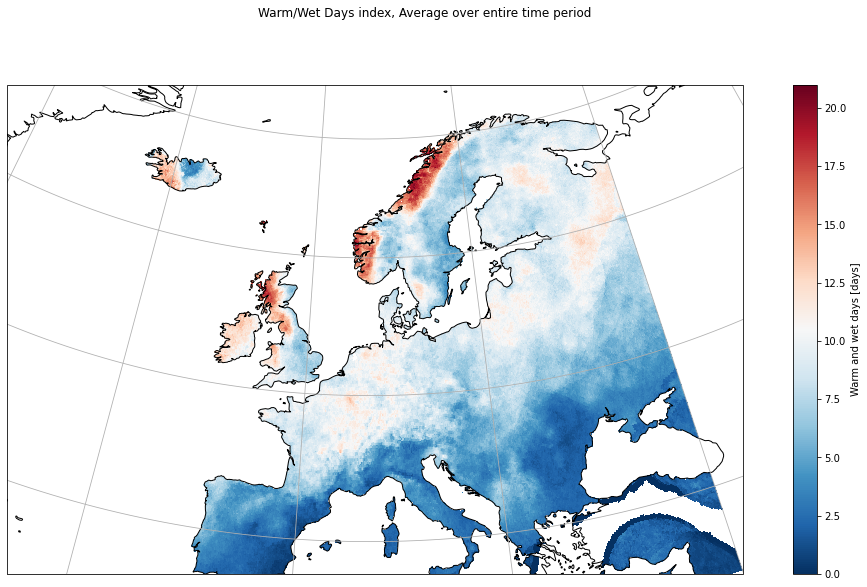

Warm/Wet DaysLet’s calculate the Warm/Wet Days index (WW) function using the icclim software. We retrieve the calculated values in an Xarray dataset, but alternatively we could also write the values automatically in an output NetCDF file using the keyword out_file when calling the icclim function.

# Fix unit of precipitation as in ERA5 it is in mm and there is no reference to the accumulation time
os.environ["HDF5_USE_FILE_LOCKING"] = "FALSE"
ds = xr.open_mfdataset(list_of_file_names)
ds.rr.attrs["units"] = "kg m-2 s-1"

# Add out_file='out_icclim.nc' to also output data into a NetCDF file
ww = icclim.ww(in_files=ds, slice_mode="year")

tg_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc
rr_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc

2022-08-10 14:02:44,577 --- icclim 5.4.0
2022-08-10 14:02:44,578 --- BEGIN EXECUTION
2022-08-10 14:02:44,578 Processing: 0%
2022-08-10 14:02:44,633 Calculating climate index: WW
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/indexing.py:1228: PerformanceWarning: Slicing is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array[indexer]

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array[indexer]
  return self.array[key]
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/dataset.py:4212: PerformanceWarning: Reshaping is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array.reshape(shape)

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array.reshape(shape)Explictly passing ``limit`` to ``reshape`` will also silence this warning
    >>> array.reshape(shape, limit='128 MiB')
  result = result._unstack_full_reindex(dim, fill_value, sparse)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/dataset.py:3929: PerformanceWarning: Reshaping is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array.reshape(shape)

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array.reshape(shape)Explictly passing ``limit`` to ``reshape`` will also silence this warning
    >>> array.reshape(shape, limit='128 MiB')
  result = result._stack_once(dims, new_dim)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
2022-08-10 14:05:04,151 Processing: 50%
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/indexing.py:1228: PerformanceWarning: Slicing is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array[indexer]

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array[indexer]
  return self.array[key]
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/dataset.py:4212: PerformanceWarning: Reshaping is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array.reshape(shape)

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array.reshape(shape)Explictly passing ``limit`` to ``reshape`` will also silence this warning
    >>> array.reshape(shape, limit='128 MiB')
  result = result._unstack_full_reindex(dim, fill_value, sparse)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xarray/core/dataset.py:3929: PerformanceWarning: Reshaping is producing a large chunk. To accept the large
chunk and silence this warning, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': False}):
    ...     array.reshape(shape)

To avoid creating the large chunks, set the option
    >>> with dask.config.set(**{'array.slicing.split_large_chunks': True}):
    ...     array.reshape(shape)Explictly passing ``limit`` to ``reshape`` will also silence this warning
    >>> array.reshape(shape, limit='128 MiB')
  result = result._stack_once(dims, new_dim)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/utils.py:434: RuntimeWarning: All-NaN slice encountered
  result = np.where(np.isnan(interpolation), np.nanmax(arr, axis=0), interpolation)
2022-08-10 14:08:20,745 Processing: 50%
/Users/page/miniconda3/envs/icclimv5/lib/python3.8/site-packages/xclim/core/cfchecks.py:45: UserWarning: Variable has a non-conforming standard_name: Got `thickness_of_rainfall_amount`, expected `['precipitation_flux']`
  check_valid(vardata, "standard_name", data["standard_name"])
2022-08-10 14:10:03,995 Processing: 100%
2022-08-10 14:10:03,996 --- icclim 5.4.0
2022-08-10 14:10:03,996 --- CPU SECS = 1592.240
2022-08-10 14:10:03,997 --- END EXECUTION

Before we plot the results, we can query our newly created Xarray dataset …

ww

<xarray.Dataset>
Dimensions:      (time: 11, longitude: 705, latitude: 465, bounds: 2)
Coordinates:
  * time         (time) datetime64[ns] 2011-07-02 ... 2021-07-02
  * longitude    (longitude) float64 -24.95 -24.85 -24.75 ... 45.25 45.35 45.45
  * latitude     (latitude) float64 25.05 25.15 25.25 ... 71.25 71.35 71.45
  * bounds       (bounds) int64 0 1
Data variables:
    WW           (latitude, longitude, time) float64 dask.array<chunksize=(93, 141, 1), meta=np.ndarray>
    time_bounds  (time, bounds) datetime64[ns] 2011-01-01 ... 2021-12-31
Attributes:
    title:        compound index WW
    references:   ATBD of the ECA&D indices calculation (https://knmi-ecad-as...
    institution:  Climate impact portal (https://climate4impact.eu)
    history:      Wed Aug 10 14:02:44 2022: ncatted -O -a units,rr,o,c,kg m-2...
    source:
    Conventions:  CF-1.6

xarray.Dataset

• Dimensions:
  • time: 11
  • longitude: 705
  • latitude: 465
  • bounds: 2
• Coordinates: (4)
  • time
    (time)
    datetime64[ns]
    2011-07-02 ... 2021-07-02

    bounds :

    time_bounds

    array(['2011-07-02T00:00:00.000000000', '2012-07-01T12:00:00.000000000',
           '2013-07-02T00:00:00.000000000', '2014-07-02T00:00:00.000000000',
           '2015-07-02T00:00:00.000000000', '2016-07-01T12:00:00.000000000',
           '2017-07-02T00:00:00.000000000', '2018-07-02T00:00:00.000000000',
           '2019-07-02T00:00:00.000000000', '2020-07-01T12:00:00.000000000',
           '2021-07-02T00:00:00.000000000'], dtype='datetime64[ns]')

  • longitude
    (longitude)
    float64
    -24.95 -24.85 ... 45.35 45.45

    array([-24.95014, -24.85014, -24.75014, ...,  45.24986,  45.34986,  45.44986])

  • latitude
    (latitude)
    float64
    25.05 25.15 25.25 ... 71.35 71.45

    array([25.049861, 25.149861, 25.249861, ..., 71.249859, 71.349859, 71.449859])

  • bounds
    (bounds)
    int64
    0 1

    array([0, 1])

• Data variables: (2)
  • WW
    (latitude, longitude, time)
    float64
    dask.array<chunksize=(93, 141, 1), meta=np.ndarray>

    units :

    days

    cell_methods :

    tas: time: mean pr: time: mean tas_per: time: mean pr_per: time: mean time: sum over days

    climatology_bounds :

    ['2011-01-01', '2021-12-31']

    window :

    5

    alpha :

    0.3333333333333333

    beta :

    0.3333333333333333

    history :

    tas: pr: tas_per: [2022-08-10 14:02:44] per: percentile_doy(arr=tg, window=5, per=75, alpha=0.3333333333333333, beta=0.3333333333333333, copy=True) - xclim version: 0.37.0 pr_per: [2022-08-10 14:05:04] per: percentile_doy(arr=rr, window=5, per=75, alpha=0.3333333333333333, beta=0.3333333333333333, copy=True) - xclim version: 0.37.0 [2022-08-10 14:10:03] warm_and_wet_days: WARM_AND_WET_DAYS(tas=tg, pr=rr, tas_per=per, pr_per=per, freq='YS') with options check_missing=any - xclim version: 0.37.0

    long_name :

    Warm and wet days

    description :

    Annual number of days where tas > {unkown}th percentile and pr > {unkown}th percentile

    Array Chunk Bytes 27.51 MiB 102.45 kiB Shape (465, 705, 11) (93, 141, 1) Count 10279 Tasks 275 Chunks Type float64 numpy.ndarray

  • time_bounds
    (time, bounds)
    datetime64[ns]
    2011-01-01 ... 2021-12-31

    array([['2011-01-01T00:00:00.000000000', '2011-12-31T00:00:00.000000000'],
           ['2012-01-01T00:00:00.000000000', '2012-12-31T00:00:00.000000000'],
           ['2013-01-01T00:00:00.000000000', '2013-12-31T00:00:00.000000000'],
           ['2014-01-01T00:00:00.000000000', '2014-12-31T00:00:00.000000000'],
           ['2015-01-01T00:00:00.000000000', '2015-12-31T00:00:00.000000000'],
           ['2016-01-01T00:00:00.000000000', '2016-12-31T00:00:00.000000000'],
           ['2017-01-01T00:00:00.000000000', '2017-12-31T00:00:00.000000000'],
           ['2018-01-01T00:00:00.000000000', '2018-12-31T00:00:00.000000000'],
           ['2019-01-01T00:00:00.000000000', '2019-12-31T00:00:00.000000000'],
           ['2020-01-01T00:00:00.000000000', '2020-12-31T00:00:00.000000000'],
           ['2021-01-01T00:00:00.000000000', '2021-12-31T00:00:00.000000000']],
          dtype='datetime64[ns]')

• Attributes: (6)

  title :

  compound index WW

  references :

  ATBD of the ECA&D indices calculation (https://knmi-ecad-assets-prd.s3.amazonaws.com/documents/atbd.pdf)

  institution :

  Climate impact portal (https://climate4impact.eu)

  history :

  Wed Aug 10 14:02:44 2022: ncatted -O -a units,rr,o,c,kg m-2 s-1 rr_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc Mon Mar 28 12:53:22 2022: ncks --no-abc -d time,22280,26297 /data3/Else/EOBSv25.0e/Grid_0.1deg/rr//rr_ensmean_master_rectime.nc /data3/Else/EOBSv25.0e/Grid_0.1deg/rr//rr_ens_mean_0.1deg_reg_2011-2021_v25.0e.nc Mon Mar 28 12:46:22 2022: ncks --no-abc --mk_rec_dmn time /data3/Else/EOBSv25.0e/Grid_0.1deg/rr//rr_ensmean_master.nc /data3/Else/EOBSv25.0e/Grid_0.1deg/rr//rr_ensmean_master_rectime.nc tas: pr: tas_per: [2022-08-10 14:02:44] per: percentile_doy(arr=tg, window=5, per=75, alpha=0.3333333333333333, beta=0.3333333333333333, copy=True) - xclim version: 0.37.0 pr_per: [2022-08-10 14:05:04] per: percentile_doy(arr=rr, window=5, per=75, alpha=0.3333333333333333, beta=0.3333333333333333, copy=True) - xclim version: 0.37.0 [2022-08-10 14:10:03] warm_and_wet_days: WARM_AND_WET_DAYS(tas=tg, pr=rr, tas_per=per, pr_per=per, freq='YS') with options check_missing=any - xclim version: 0.37.0 [2022-08-10 14:10:03] Calculation of WW index(annual time series) from 07-02-2011 to 07-02-2021 - icclim version: 5.4.0

  source :

  Conventions :

  CF-1.6

We see that ww (dataset for the Warm/Wet Days index) has one variable called “WW”. If you view the documentation of icclim you will see that this is the Warm/Wet Days index valid for a grid cell at the surface. The units are days.

While an Xarray dataset may contain multiple variables, an Xarray data array holds a single multi-dimensional variable and its coordinates.

Now let’s plot the average Warm/Wet Days index for this time over Europe, and we take the same European subset as that used for the C3S Climate Bulletins.

# Set spatial extent and centre
central_lat = 53.0
central_lon = 7
extent = [-25, 40, 34, 72]  # Western Europe

# Calculate time average
ww_avg = ww["WW"].mean(dim="time", keep_attrs=True)

# Select European subset
ww_sub = ww_avg.where(
    (ww_avg.latitude < 72)
    & (ww_avg.latitude > 34)
    & (ww_avg.longitude < 40)
    & (ww_avg.longitude > -25),
    drop=True,
)

# Set plot projection
map_proj = ccrs.AlbersEqualArea(
    central_longitude=central_lon, central_latitude=central_lat
)

# Define plot
f, ax = plt.subplots(figsize=(18, 9), subplot_kw={"projection": map_proj})

# Plot data with proper colormap scale range
p = ww_sub.plot(cmap="RdBu_r", transform=ccrs.PlateCarree())

# Plot information
plt.suptitle("Warm/Wet Days index, Average over entire time period", y=1)

# Add the coastlines to axis and set extent
ax.coastlines()
ax.gridlines()
ax.set_extent(extent)

# Save plot as png
plt.savefig(f"{DATADIR}E-OBS_ww_index.png")

We can notice that we have more warm and wet days on the coastal regions exposed to westerlies in northern Europe, near mountain ranges. Since the dataset only has data over the continent, the values over the sea are not to take into account.

---
