Calculate averaged surface temperature and precipitation anomalies#
Goals:
Compute the averaged surface temperature anomaly and the same for precipitation anomaly over the period 2081-2100 compared to the period 1981-2000
Display delta-T delta-P diagram
The example calculates the averaged temperature anomaly (using the TG indicator) versus the precipitation anomaly (using the PRCPTOT indicator) for the period 2081-2100 compared with the reference period 1981-2000 for SSP585 and several climate models.
We assume to have the tas and the pr variables in netCDF files in a ./data/latest folder. The data can be downloaded using the metalink provided with this notebook. The data described in a .metalink file can be downloaded with tools such as aria2 or a browser plugin such as DownThemAll! If you wish to use a different dataset, you can use the
climate 4 impact portal to search and select the data you wish to use and a metalink file to the ESGF data will be provided.
The data is read using xarray and a deltaT-deltaP diagram averaged over Europe is generated.
The datasets expected for this notebook are the tas and pr variables needed to calculate TG and PRCPTOT for several climate models, for the historical period 1981-2000 and the future SSP585 period 2081-2100, and for one member. Daily data is used. In C4I, you can find all of the data needed in the CMIP6 project, at the esgf-data3.ceda.ac.uk and esgf.nci.org.au mirrors.
Preparation of the modules#
[ ]:
import datetime
from pathlib import Path
import matplotlib.pyplot as plt
import pandas as pd
import xarray as xr
import icclim
%pip install icclim matplotlib nc_time_axis
[ ]:
Parameters Setup#
The time period of interest as well as the reference period are defined here. A list of models is listed here as an example. Here we used Monthly data (Amon) but daily data could also be used. The corresponding datafiles must have been selected by the user, containing both the studied and referenced periods.
[ ]:
# studied period
yearb = 2081
yeare = 2100
dt1 = datetime.datetime(yearb, 1, 1, tzinfo=datetime.timezone.utc)
dt2 = datetime.datetime(yeare, 12, 31, tzinfo=datetime.timezone.utc)
# reference period
yearrefb = 1981
yearrefe = 2000
dtr1 = datetime.datetime(yearrefb, 1, 1, tzinfo=datetime.timezone.utc)
dtr2 = datetime.datetime(yearrefe, 12, 31, tzinfo=datetime.timezone.utc)
# studied domain
# Western Europe
minlat = 30
maxlat = 56
minlon = -30
maxlon = 30
models = ["CMCC-ESM2", "GFDL-ESM4"]
out_f = {}
out_hist_f = {}
out_f_pr = {}
out_hist_f_pr = {}
for model in models:
out_f[model] = f"output/deltaT_deltaP_anomaly/dtdp_tg_icclim_{model}.nc"
out_hist_f[model] = f"output/deltaT_deltaP_anomaly/dtdp_tg_icclim_{model}_hist.nc"
out_f_pr[model] = f"output/deltaT_deltaP_anomaly/dtdp_pr_icclim_{model}.nc"
out_hist_f_pr[model] = (
f"output/deltaT_deltaP_anomaly/dtdp_pr_icclim_{model}_hist.nc"
)
data_dir = Path("data/latest")
filenames_hist = data_dir.glob(f"tas_day_{model}_historical_*.nc")
filenames_585 = data_dir.glob(f"tas_day_{model}_ssp585_*.nc")
filenames_hist_pr = data_dir.glob(f"pr_day_{model}_historical_*.nc")
filenames_585_pr = data_dir.glob(f"pr_day_{model}_ssp585_*.nc")
icclim is then executed for both periods for each climate model separately.
[ ]:
for model in models:
icclim.index(
index_name="TG",
in_files=[str(f) for f in filenames_585],
var_name="tas",
slice_mode="year",
time_range=[dt1, dt2],
out_file=out_f[model],
logs_verbosity="LOW",
)
icclim.index(
index_name="TG",
in_files=[str(f) for f in filenames_hist],
var_name="tas",
slice_mode="year",
time_range=[dtr1, dtr2],
out_file=out_hist_f[model],
logs_verbosity="LOW",
)
icclim.index(
index_name="PRCPTOT",
in_files=[str(f) for f in filenames_585_pr],
var_name="pr",
slice_mode="year",
time_range=[dt1, dt2],
out_file=out_f_pr[model],
logs_verbosity="LOW",
)
icclim.index(
index_name="PRCPTOT",
in_files=[str(f) for f in filenames_hist_pr],
var_name="pr",
slice_mode="year",
time_range=[dtr1, dtr2],
out_file=out_hist_f_pr[model],
logs_verbosity="LOW",
)
Data preparation#
Here all data is loaded in 2 separate variables, one containing all the historical periods for all the models, and the same for the future time period.
Extract geographical domain and deal with longitudes
[ ]:
# Open datasets
tg = []
tg_hist = []
pr = []
pr_hist = []
for model in models:
dsl = xr.open_dataset(out_f[model], decode_times=False)
dsl["time"] = xr.decode_cf(dsl).time
dsl = dsl.assign_coords({"model_id": model})
dslp = xr.open_dataset(out_f_pr[model], decode_times=False)
dslp["time"] = xr.decode_cf(dslp).time
dslp = dslp.assign_coords({"model_id": model})
dshl = xr.open_dataset(out_hist_f[model], decode_times=False)
dshl["time"] = xr.decode_cf(dshl).time
dshl = dshl.assign_coords({"model_id": model})
dshlp = xr.open_dataset(out_hist_f_pr[model], decode_times=False)
dshlp["time"] = xr.decode_cf(dshlp).time
dshlp = dshlp.assign_coords({"model_id": model})
# Reorder longitudes if needed and extract domain
if minlon > maxlon or minlon < 0:
dsl = dsl.assign_coords(lon=(((dsl.lon + 180) % 360) - 180)).roll(
lon=(dsl.dims["lon"] // 2), roll_coords=True
)
dslp = dslp.assign_coords(lon=(((dslp.lon + 180) % 360) - 180)).roll(
lon=(dslp.dims["lon"] // 2), roll_coords=True
)
dshl = dshl.assign_coords(lon=(((dshl.lon + 180) % 360) - 180)).roll(
lon=(dshl.dims["lon"] // 2), roll_coords=True
)
dshlp = dshlp.assign_coords(lon=(((dshlp.lon + 180) % 360) - 180)).roll(
lon=(dshlp.dims["lon"] // 2), roll_coords=True
)
if minlon >= 180:
minlon = minlon - 360
if maxlon >= 180:
maxlon = maxlon - 360
dsl = dsl.sel(lon=slice(minlon, maxlon), lat=slice(minlat, maxlat))
dslp = dslp.sel(lon=slice(minlon, maxlon), lat=slice(minlat, maxlat))
dshl = dshl.sel(lon=slice(minlon, maxlon), lat=slice(minlat, maxlat))
dshlp = dshlp.sel(lon=slice(minlon, maxlon), lat=slice(minlat, maxlat))
tg.append(dsl["TG"])
pr.append(dslp["PRCPTOT"])
tg_hist.append(dshl["TG"])
pr_hist.append(dshlp["PRCPTOT"])
Perform spatial average on the extracted geographical domain#
[ ]:
# Average different grids
for ii in range(len(tg)):
tg[ii] = tg[ii].mean(dim=["lon", "lat"])
for ii in range(len(pr)):
pr[ii] = pr[ii].mean(dim=["lon", "lat"])
for ii in range(len(tg_hist)):
tg_hist[ii] = tg_hist[ii].mean(dim=["lon", "lat"])
for ii in range(len(pr_hist)):
pr_hist[ii] = pr_hist[ii].mean(dim=["lon", "lat"])
Define a function to align all different calendar types#
[ ]:
def to_pandas_dt(da: "xr.DataArray") -> "xr.DataArray":
"""Takes an annual DataArray. Change the calendar to a pandas datetime."""
val = da.copy()
timev = [int(v) for v in da.time.dt.strftime("%Y")]
timevp = pd.to_datetime(timev, format="%Y")
time1 = xr.DataArray(data=timevp, dims=["time"])
time1.name = "time"
val = val.rename({"time": "timepd"})
time1 = time1.rename({"time": "timepd"})
return val.assign_coords({"timepd": time1})
Align calendars of all input data#
[ ]:
# Convert all calendars to annual precision (we have configured icclim to output yearly data)
ll = [to_pandas_dt(da) for da in tg]
llp = [to_pandas_dt(da) for da in pr]
ll_hist = [to_pandas_dt(da) for da in tg_hist]
llp_hist = [to_pandas_dt(da) for da in pr_hist]
# Concatenate all models into one
full_tg = xr.concat(ll, "model_id", join="outer")
full_pr = xr.concat(llp, "model_id", join="outer")
full_tg_hist = xr.concat(ll_hist, "model_id", join="outer")
full_pr_hist = xr.concat(llp_hist, "model_id", join="outer")
full_tg_anomaly = full_tg.mean(dim="timepd") - full_tg_hist.mean(dim="timepd")
full_pr_anomaly = (
(full_pr.mean(dim="timepd") - full_pr_hist.mean(dim="timepd"))
/ full_pr.mean(dim="timepd")
* 100.0
)

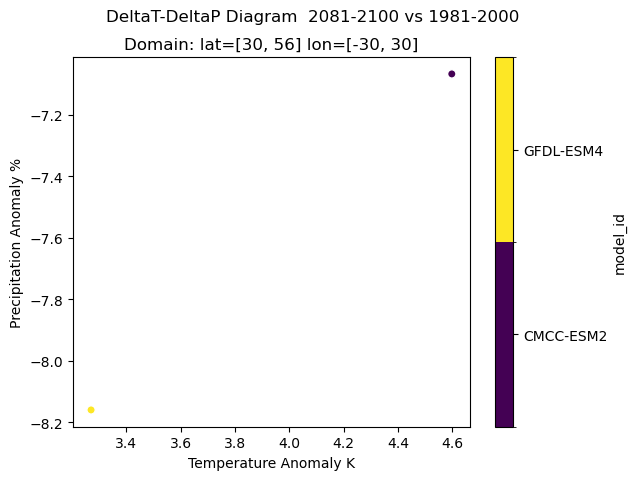

Plot a multi-model scatter plot of the anomalies of temperature and precipitation of the future time period 2081-2100 SSP 585 compared to the historical period#
Temperature and Precipitation anomalies for SSP585 of the period 2080-2100 vs 1981-2000.
[ ]:
# Plot deltaT-deltaP diagram
# To use xarray scatter plot, create a new Dataset using both DataArrays
ds_anomaly = xr.Dataset({"TG": full_tg_anomaly, "PRCPTOT": full_pr_anomaly})
# Scatter Plot
xr.plot.scatter(ds_anomaly, x="TG", y="PRCPTOT", hue="model_id")
plt.suptitle(
"DeltaT-DeltaP Diagram "
+ str(yearb)
+ "-"
+ str(yeare)
+ " vs "
+ str(yearrefb)
+ "-"
+ str(yearrefe)
)
plt.title(
"Domain: lat=["
+ str(minlat)
+ ", "
+ str(maxlat)
+ "] lon=["
+ str(minlon)
+ ", "
+ str(maxlon)
+ "]"
)
plt.ylabel("Precipitation Anomaly %")
plt.xlabel("Temperature Anomaly K")
